9300 E – Port Crane up to Panamax Class

SENNEBOGEN 9300E

The SENNEBOGEN 9300 E is a harbor mobile crane designed for bulk and general cargo handling, responsible for loading and unloading ships. Its all-wheel steering ensures flexible maneuverability. The height-adjustable cab offers optimal visibility. The machine can be equipped with attachments such as clamshell grabs.

Operating weight
up to 90 t

Cabs
Portcab

Drive
Diesel engine: 585 kW
Electric engine: 615 kW.

Port crane for port handling up to Post-Panamax Class

With a load capacity of 90 t at a reach of 19 m, the SENNEBOGEN 9300 can be used for all ship sizes. The port crane loads and unloads ships up to Post-Panamax class. Thanks to its unique Skylift cab adjustment it provides a comfortable and safe access to the optimal working position. The mobile undercarriage with all-wheel steering and 14 wheel sets ensures it is maneuverable and has low ground pressure.

INNOVATIVE PORT HANDLING

Bulk cargo handling with 4-rope or 2-rope grab, container handling with spreader
Available with electric drive (615 kW) or diesel engine (563 kW)
Powerful motor slewing unit (90 t)

Sophisticated mobility concept: excellent stability and lower ground pressure thanks to even load distribution across 14 wheel sets

Better view of the port

Safe, comfortable elevation to working height in a matter of seconds
Work at a viewing height of up to 21.2 meters
Perfect view into the ship’s hull thanks to custom height adjustment
Excellent machine maneuverability in the low cab position

SERVICE-FRIENDLY DESIGN

Walk-in electric and diesel power pack with all hydraulic and engine components
Clear, clean engine compartment

Optimized ventilation and filter system, ideal for bulk cargo handling

BROCHURE

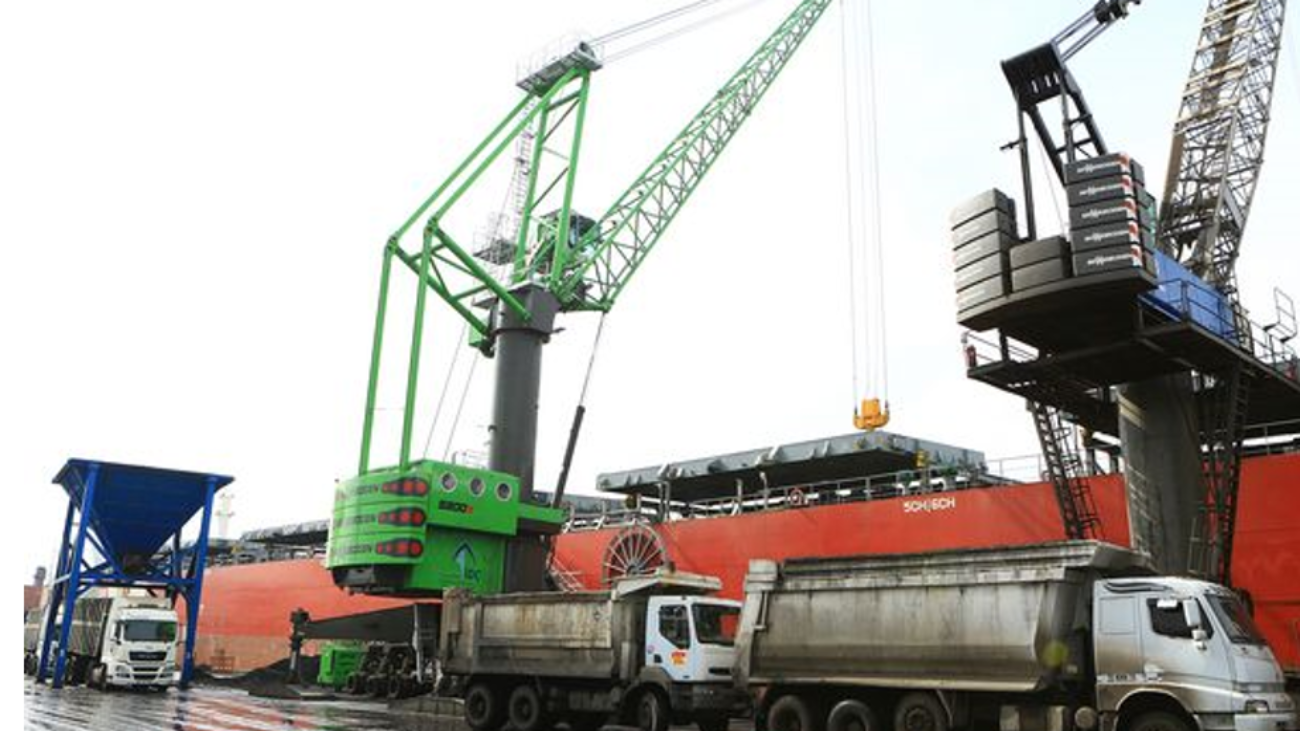

The SENNEBOGEN 9300 in operation

9300 Mobile – Mobile harbor crane with electric drive handling grain

Location: Turkey

9300 Mobile – Mobile harbor crane concept: popular solution for maximum flexibility in the port

Location: Italy

9300 Mobile – Unloading a ship

9300 Mobile – Filling the hopper with coal to load trucks

9300 Mobile – Ship unloading possible up to Panamax size

9300 Mobile – Port handling

9300 Mobile – Mobile undercarriage

9300 Mobile – Loading the mobile undercarriage

Factory transport for loading in port

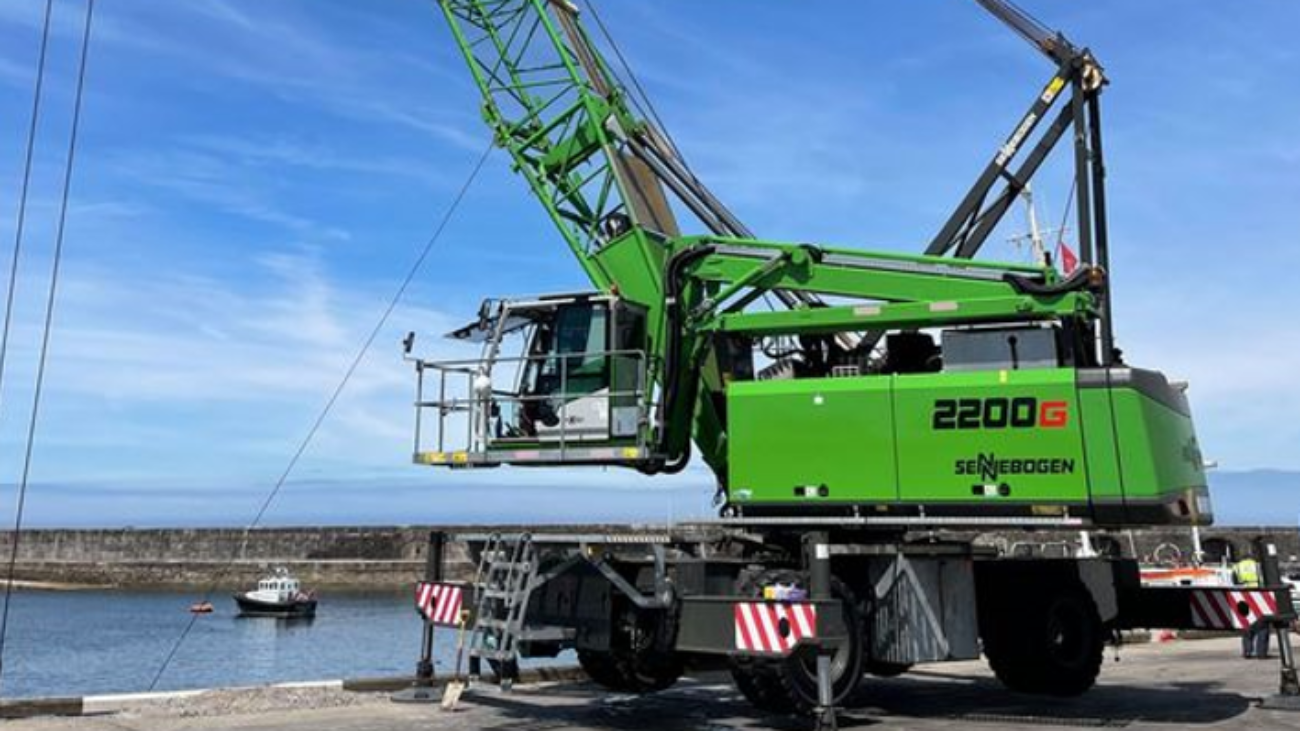

SENNEBOGEN 2200G

The SENNEBOGEN 2200 G is a mobile harbor crane designed for bulk and general cargo handling. It handles loading, unloading, and ship discharge operations. Its robust and powerful mobile chassis offers greater flexibility compared to stationary or rail-mounted cranes. Various attachments, such as hooks or grabs, allow for versatile handling tasks.

Operating weight up to 45 t

Max. hook height up to 37.3 m

Drive Diesel engine: 168 kW Electric engine: 200kW

High performance mobile crane for flexible port handling

Thanks to its robust and powerful mobile undercarriage, the SENNEBOGEN 2200 port crane promises increased flexibility compared to stationary or rail-mounted solutions. With an operating weight of 66 t and a maximum lifting capacity of 45 t, it is perfectly suited for loading and unloading smaller vessels at the port. The possibility to equip it with various attachments, such as hooks, grabs or spreaders, enables it to be used for a wide range of applications.

Better view at the port

Flexibly adjustable cab elevation allows perfect visibility into the ship’s hull
Safe, comfortable elevation to the working position in just a few seconds

Mobility and low groung pressure

High stability and low ground pressure ensured by large support square and even load distribution
Mobile undercarriage for fast and flexible positioning of the machine
