9300 E – Port Crane up to Panamax Class

SENNEBOGEN 9300E

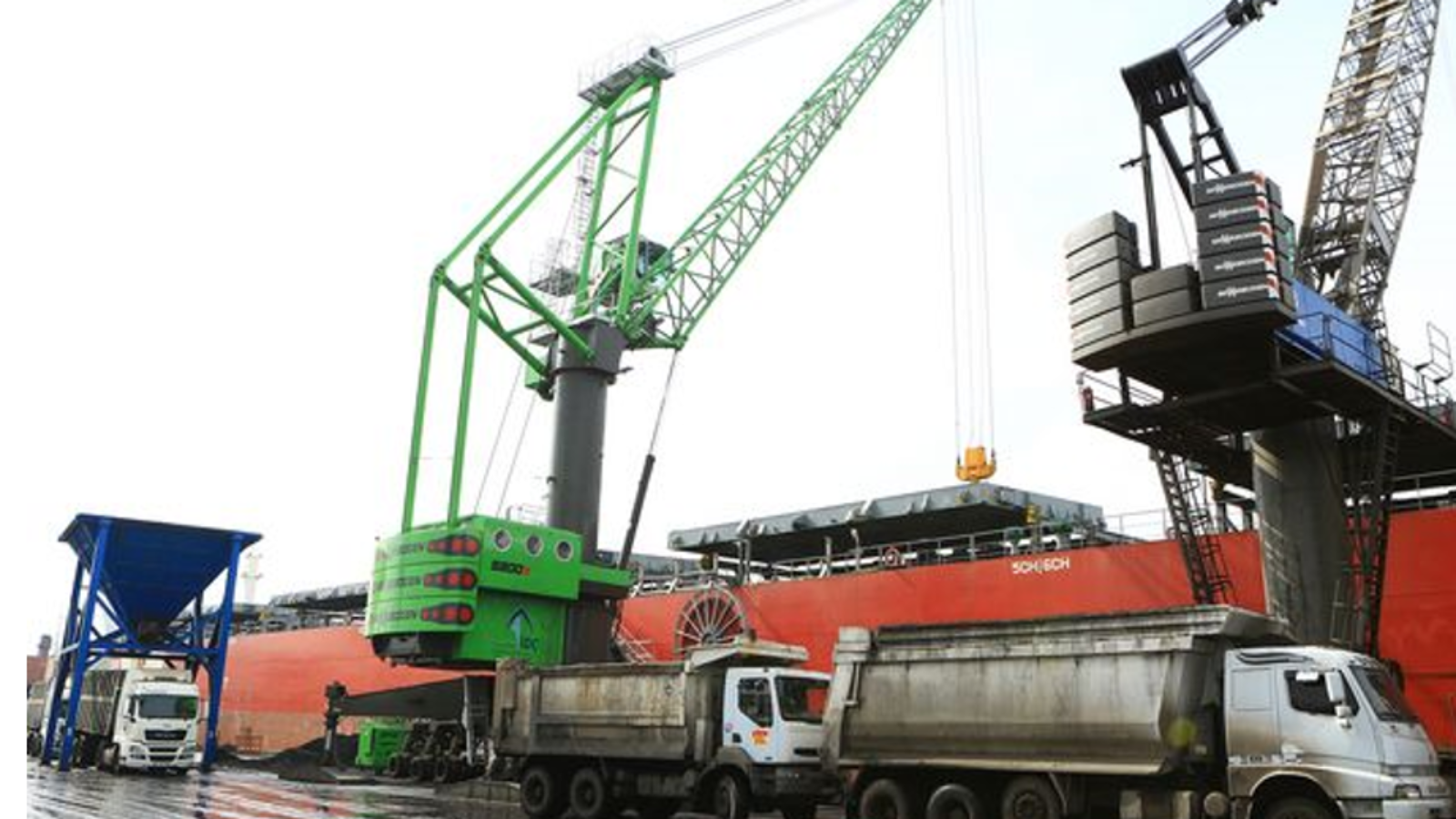

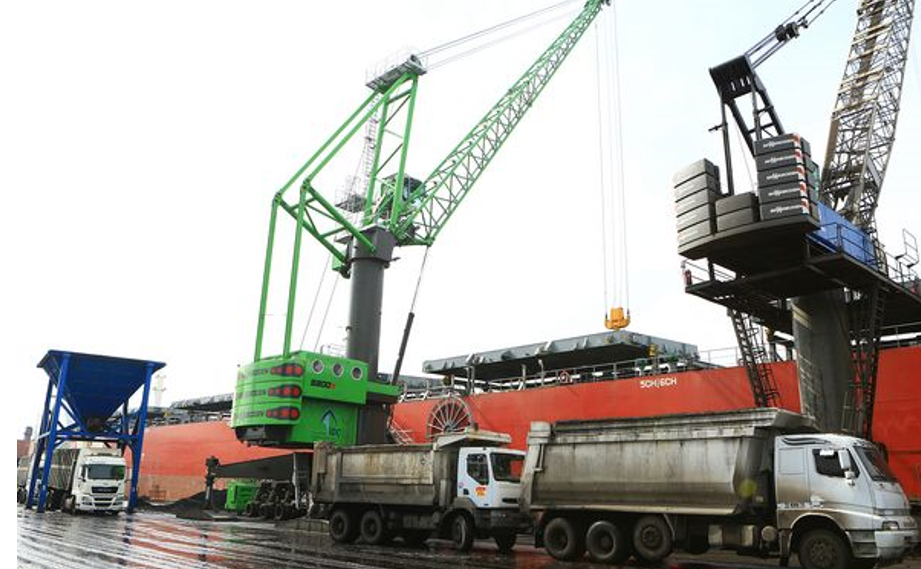

The SENNEBOGEN 9300 E is a harbor mobile crane designed for bulk and general cargo handling, responsible for loading and unloading ships. Its all-wheel steering ensures flexible maneuverability. The height-adjustable cab offers optimal visibility. The machine can be equipped with attachments such as clamshell grabs.

Operating weight
up to 90 t

Cabs
Portcab

Drive
Diesel engine: 585 kW
Electric engine: 615 kW.

Port crane for port handling up to Post-Panamax Class

With a load capacity of 90 t at a reach of 19 m, the SENNEBOGEN 9300 can be used for all ship sizes. The port crane loads and unloads ships up to Post-Panamax class. Thanks to its unique Skylift cab adjustment it provides a comfortable and safe access to the optimal working position. The mobile undercarriage with all-wheel steering and 14 wheel sets ensures it is maneuverable and has low ground pressure.

INNOVATIVE PORT HANDLING

Bulk cargo handling with 4-rope or 2-rope grab, container handling with spreader
Available with electric drive (615 kW) or diesel engine (563 kW)
Powerful motor slewing unit (90 t)

Sophisticated mobility concept: excellent stability and lower ground pressure thanks to even load distribution across 14 wheel sets
