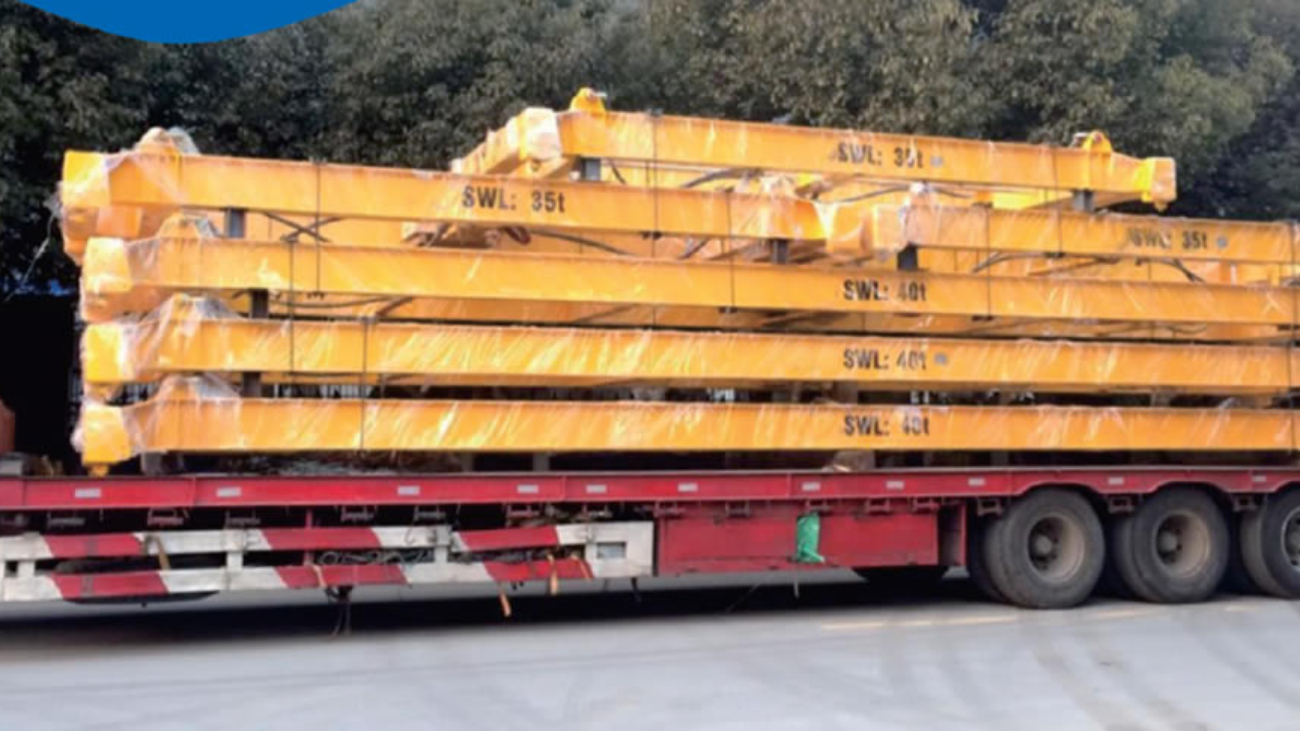

Semi-automatic Container Spreader

SEMI-AUTOMATIC CONTAINER SPREADER

The semi-automatic spreader is designed for the handling of 20 ft & 40 ft ISO containers with single or double hook jib cranes, in ports or on vessels. The twistlocks are activated by landing and lifting the spreader from the container by the crane operator. No hydraulic or electric systems are needed.

The fixed frame is mounted to a crane by bridle sling and provides a simple way to load and unload containers. Great for ports who need to handle containers on and off a ship, but have lower lift counts.

Standard and Heavy Duty Models are available.

Telescopic Container Spreader

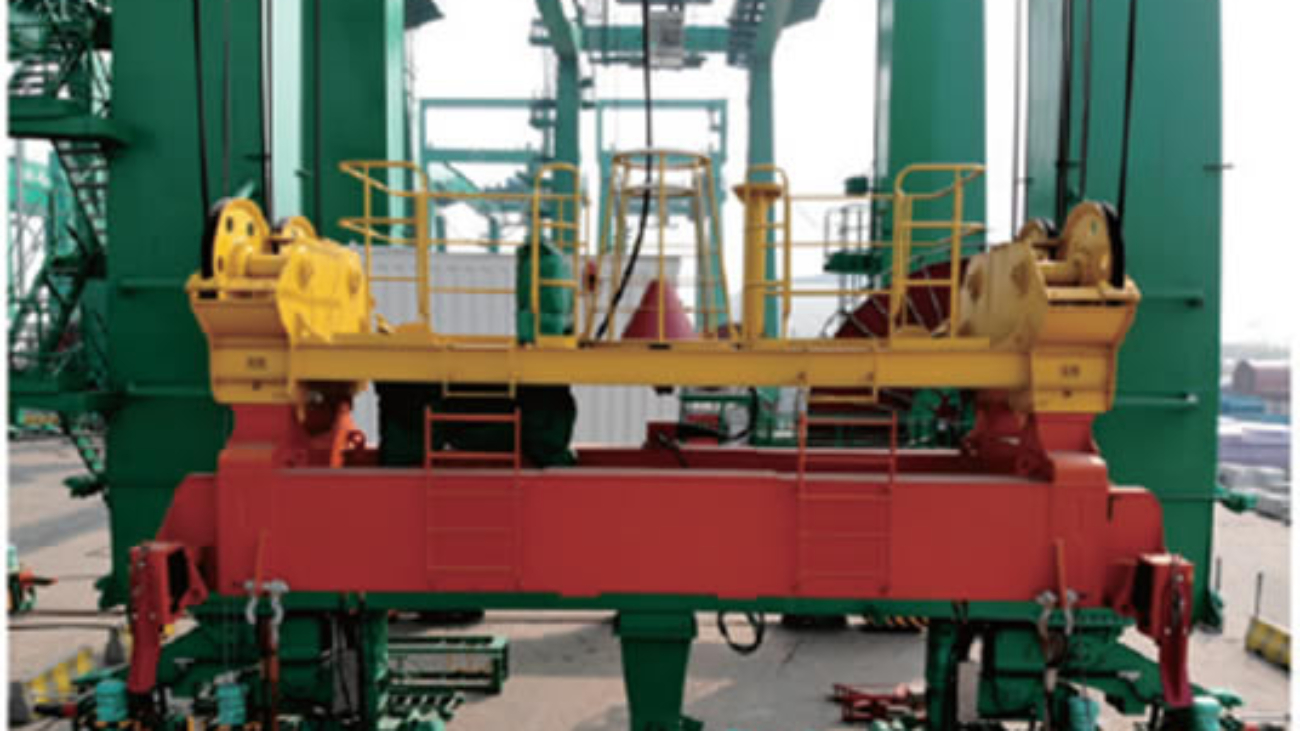

TELESCOPIC CONTAINER SPREADER

The robust and reliable telescoping system consists of 3-point mounted hydraulic cylinders, impact protected with spring washer packages and hydraulic relief valves. The twistlock-beams are equipped with the quick exchange floating twistlocks system. The standard spreaders are hydraulically powered by the twin motor/pump power pack, mounted on heavy duty shock absorbers.

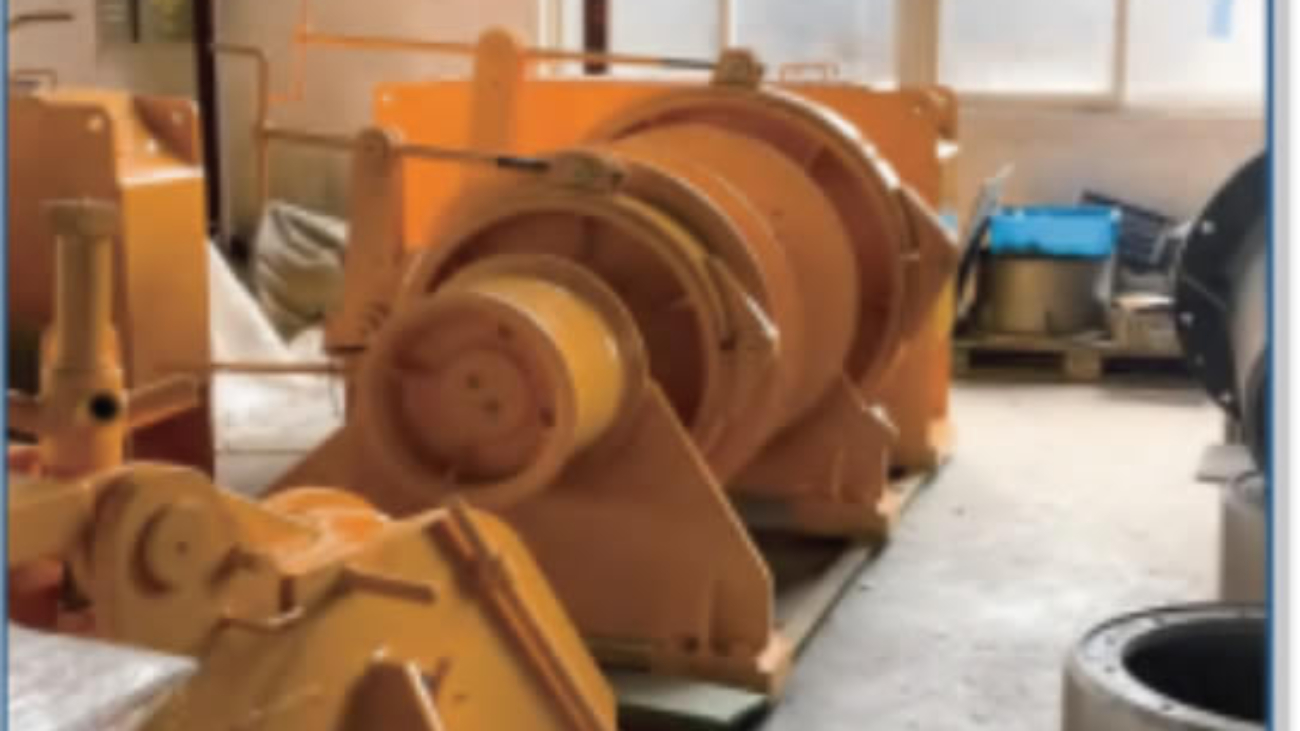

mooring

HYDRAULIC MOORING WINCH

OUCO’s moonng winches feature an integrated design that combines a windlass, winch, and capstan for precise handling of mooring lines, anchor chains, and tow ropes. The corrosion-resis­tant construction ensures longevity and minimal maintenance, making it ideal for offshore opera­tions.

Our hydraulic mooring winches are available in both single-drum and double-drum options, which come in coaxial and waterfall types. To meet the different mooring winches and user needs, we also manufacture right-hand and left-hand versions. We can customize these winches with optional features, such as stainless steel drums, galvanized clovers, and greasing systems.

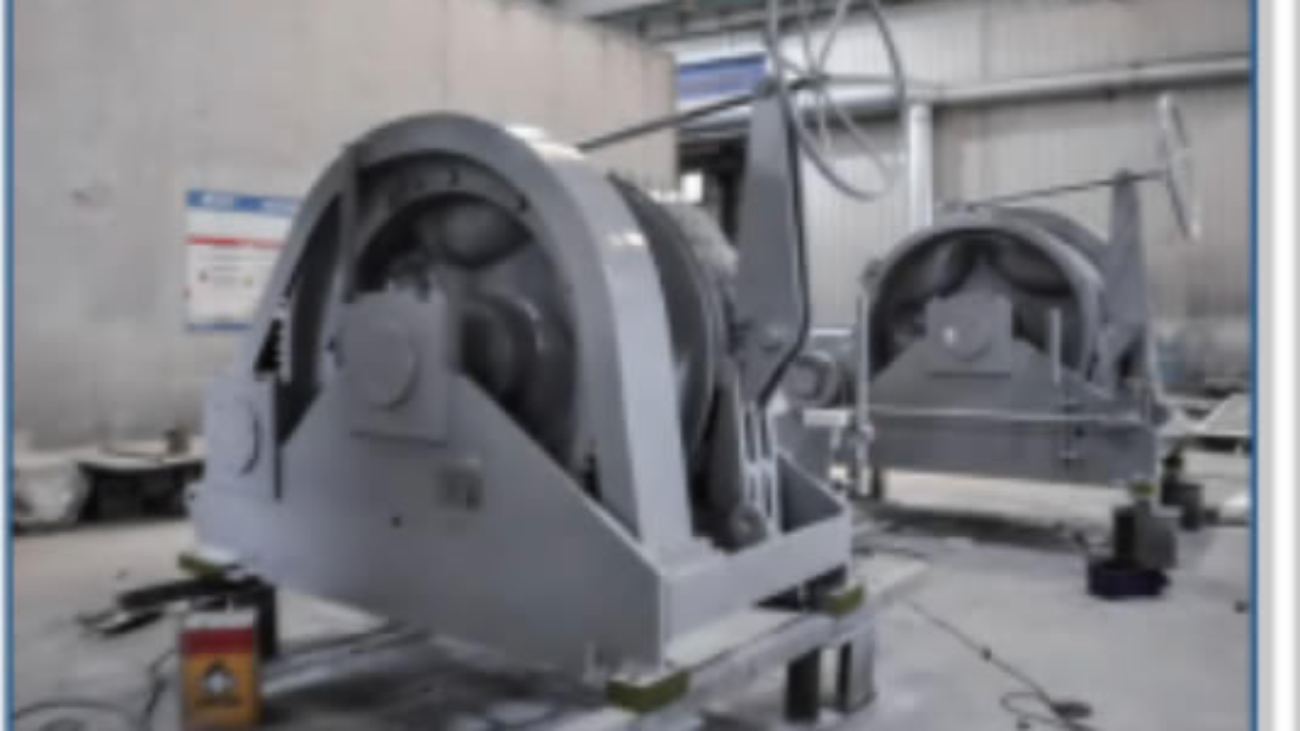

Hydraulic Anchor Winch

HYDRAULIC ANCHOR WINCH

OUCO’s marine hydraulic anchor winches, also known as windlasses, provide a simple, efficient solution by combining multiple functions on a single driven main shaft. These hydraulic winches are designed to secure the anchor chain on a boat, enabling the chain or cable to be raised and lowered easily. The winch operates by engaging the links of the chain or cable with a hydraulic notched wheel. Our hydraulic anchor winches come with a range of optional features to suit your needs, such as stainless steel drums, galvanized clovers, greasing systems, and stainless steel protective covers, among others.

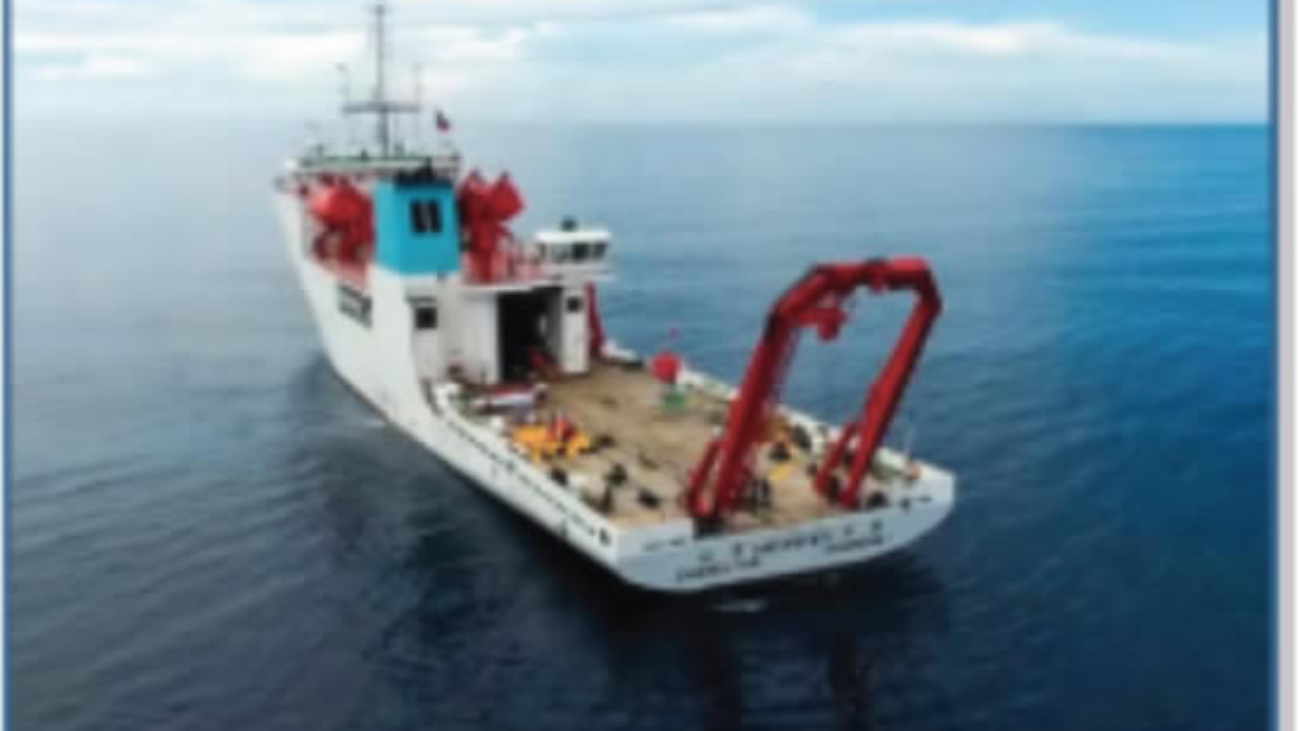

Launch and Recovery System

LAUNCH AND RECOVERY SYSTEM

OUCO’s launch and recovery systems (LARS) are designed to withstand harsh environments, expand the operational possibilities for remotely-operated vehicles, and optimize the deployment of research equipment. Our LARS deploy and recover a variety of equipment, including ROVs, CTDs, seabed sampling equipment, and much more, with the ability to operate at depths of up to 4000 meters.

A typical launch and recovery system consists of an A-frame crane with heave-compensation, an umbilical winch, skid tie-down mounting plates, and an optional hydraulic power unit. These machines are capable of lowering or dropping equipment into the water, and lifting it out once the mission is completed.

marine capstan

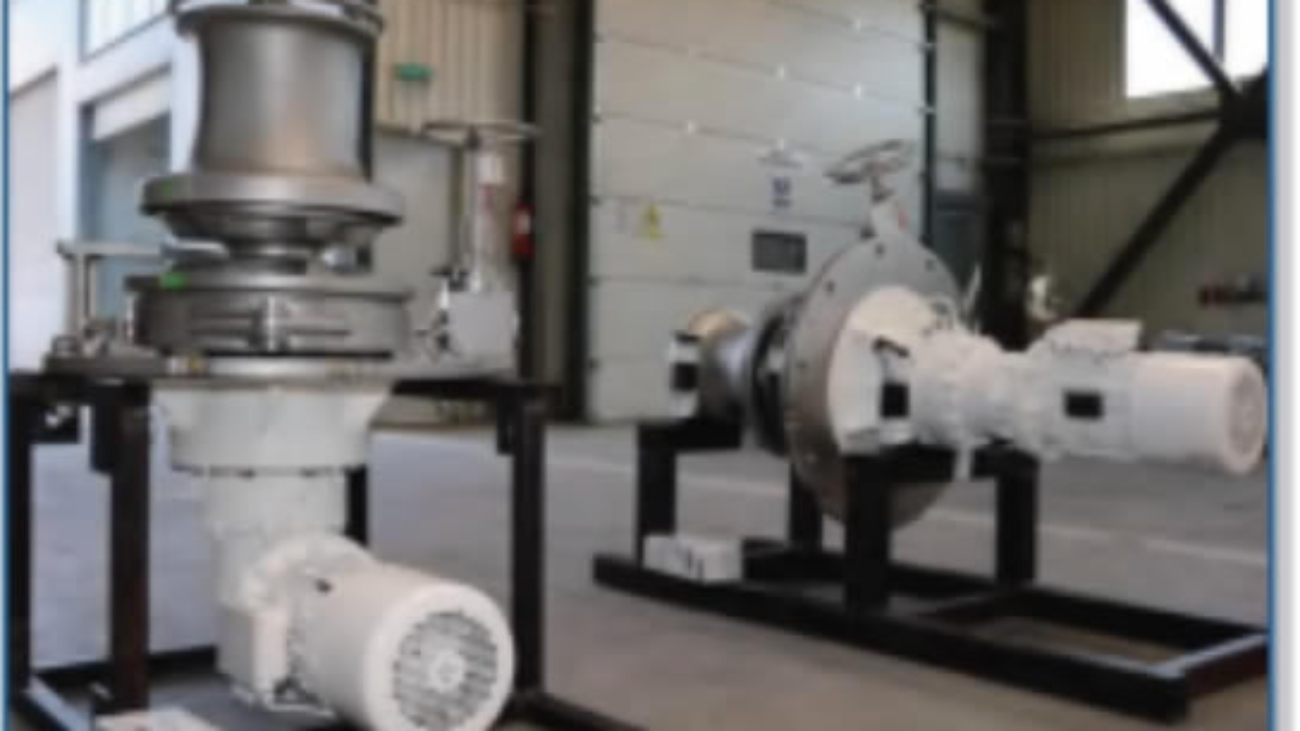

MARINE CAPSTAN WINCH

OUCO offers capstans with both electric and hydraulic drive, featuring a space-saving design for onboard installation. Our marine anchor capstan winches serve the same purpose and functions as windlass winches, but with the chain wheel mounted on a vertical axis, allowing for horizontal rope wrappmg.

Our electric marine capstans consist of a warping head, clutch part, chain wheel, band brake, reducer, and electric motor. We offer the choice of a local control stand or a remote control panel for conve­nient operation..

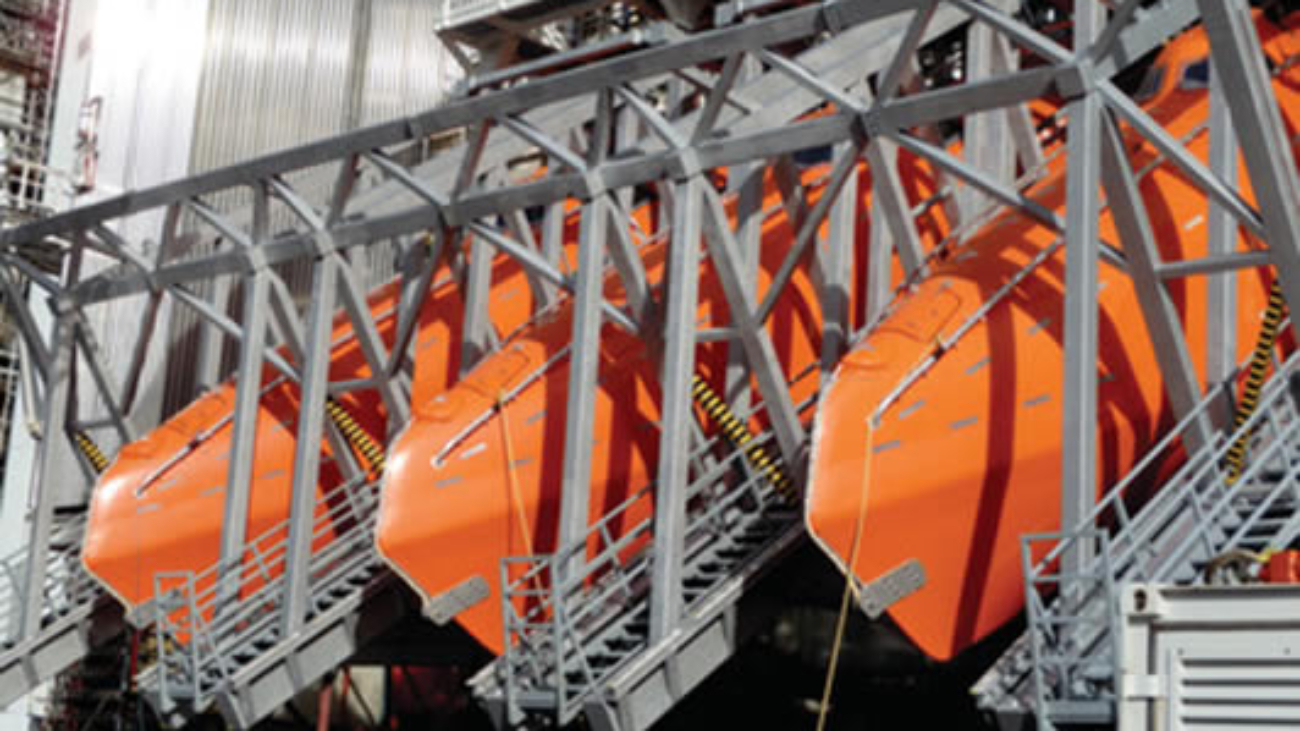

free fall life boat davits

FREE-FALL LIFEBOAT DAVITS

PALFINGER’s free-fall lifeboat davits are designed for long time operations under extreme circumstances in a highly corrosive marine environment. They are suitable for safe and efficient launching of a fully manned free-fall lifeboat against unfavorable conditions of trim of up to 10 degrees and a list of up to 20 degrees either way.

Free-fall lifeboat davits designed according to NORSOK standard

LA SERIES

  • Complies to IMO / SOLAS regulations
  • Safe working load from 50 kN to 313 kN
  • Corrosion resistant
  • Designed according to NORSOK standard

PALFINGER Neptune free-fall lifeboat davits are designed and tested in accordance with latest IMO/SOLAS regulations

NPT FREE-FALL LIFEBOAT DAVIT SERIES

  • Complies to SOLAS regulations
  • Safe Working Load from 50 kN – 130 kN
  • Free fall launching or hydraulic lowering

OPTIONS

  • Ex-Proof
  • Other options available on request

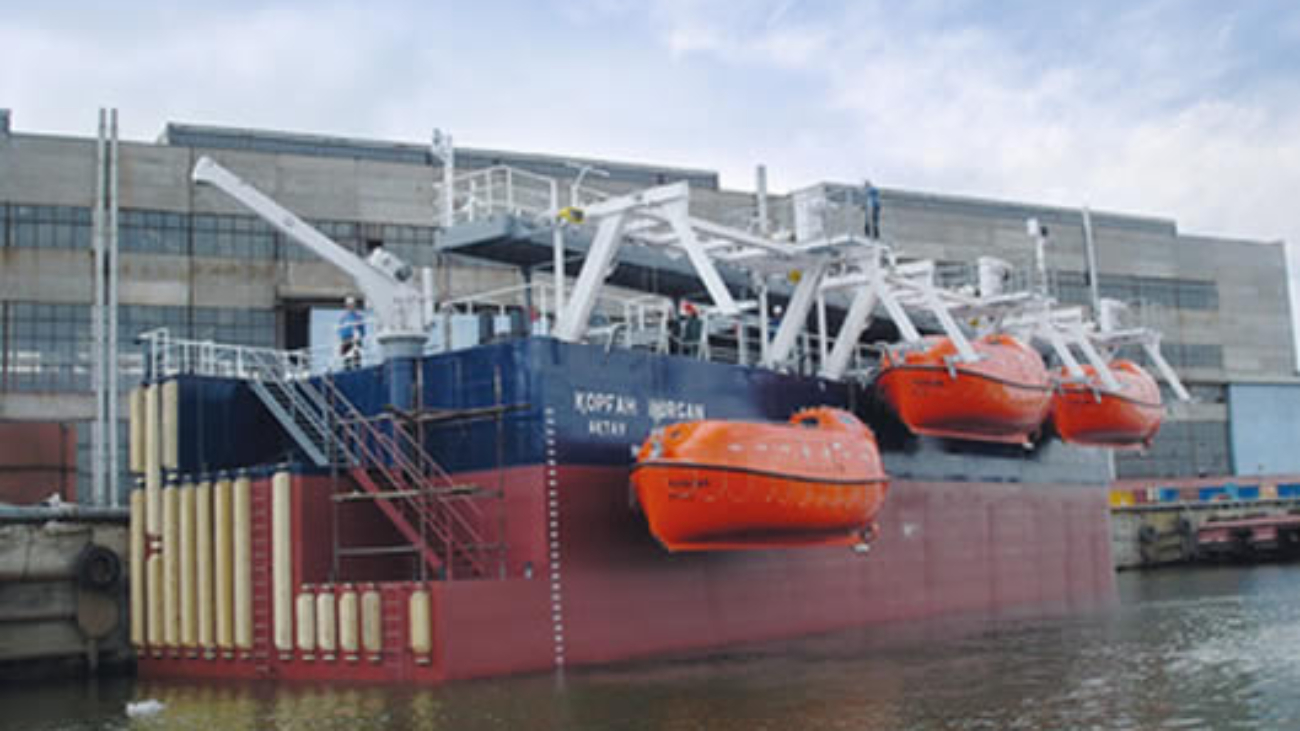

offshore davits

OFFSHORE DAVITS | GRAVITY

Fixed outrigger platform davit for lifeboats

FPG SERIES

  • Fixed outrigger platform davit for lifeboats
  • Solid and proven design
  • Easy to operate
  • For life- and/or rescue boat handling

Specially designed for installation use on offshore platforms

FAD 1000

  • Independent integrated hydraulic system
  • Gravity lowering/electrical hoisting
  • Light weight, with adjustable hook distance
  • Easy to install and maintain

OPTIONS

  • Ex-proof
  • Heating system
  • Other options available on request

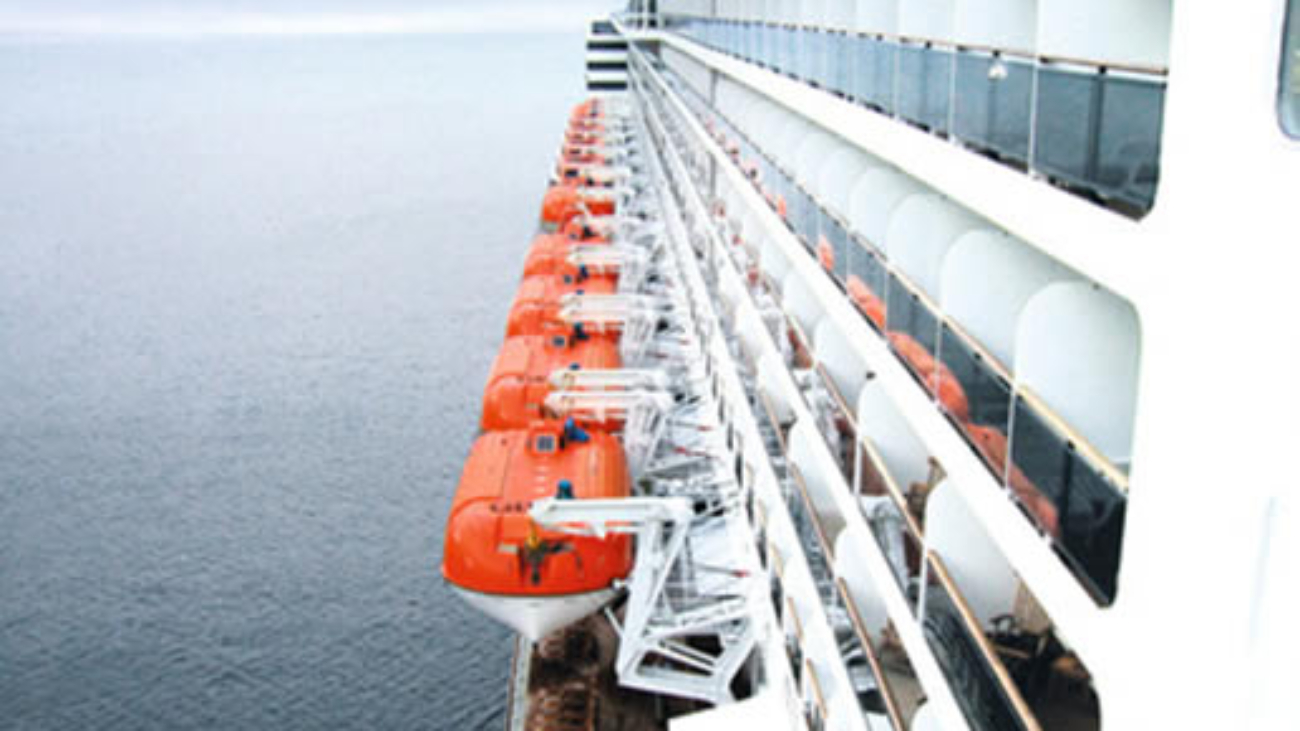

PASSENGER VESSEL DAVITS

PASSENGER VESSEL DAVITS

PALFINGER offers a range of innovative, compact, and well-designed davits for the cruise market which maximize the available deck space on board while at the same time offering an extremely efficient installation process and minimal lifetime maintenance.

Davits for totally and partially enclosed lifeboats

VIP SERIES

  • Gravity based davits
  • Different winches configurations available
  • Low cost of ownership
  • Easy to operate
  • Complies with SOLAS, MED and USCG requirements

Davits for the cruise market

PD SERIES

  • Innovative design
  • Semi-gravity based, hydraulic assisted
  • Easy to install (plug and play)
  • A good solution if limited space

OPTIONS

  • Converter
  • Painter line boom
  • Heating system
  • Other options available on request

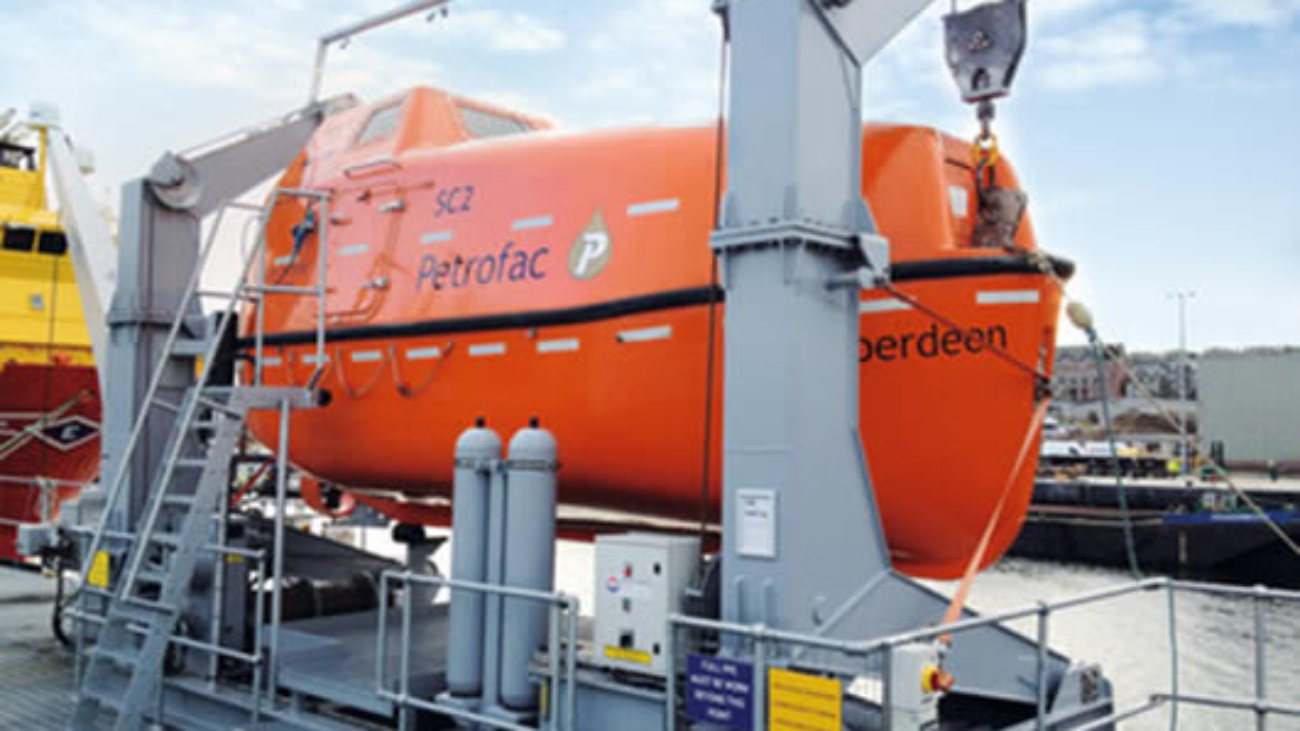

PFH SERIES

LIFEBOAT DAVITS

PALFINGER’s lifeboat davits are suitable for any type of lifeboat and rescue boat with a full complement of people and equipment. These davits can be supplied in modular sections or as one completely assembled unit, depending on the available deck space. Since its SWL and outreach are usually determined by the size of the lifeboat, PALFINGER MARINE offers a range of standard designs that are adaptable to some extent in order to meet individual and specific needs.

Hydraulic pivoting davit for lifeboats

PFH SERIES

  • Hydraulic pivoting davit provided with self-contained HPU
  • Ideal for situations where height restrictions apply
  • Modular built system, easy to install
  • Foldable davit arms for easy transportation
  • Main components installed on the davit foundation frames

Totally enclosed davit system with all components protected inside the structure

NPD SERIES

  • Hydraulic pivoting and hydraulic hoisting/lowering
  • Easy to install (plug and play)
  • Fitted with several inspection/maintenance hatches for easy access to all equipment built inside
  • Totally enclosed davit system, components protected from all weather conditions

Single pivoting gravity davits for lifeboats

NPT & PLG SERIES

  • Simple system based on well-known concept
  • Swing-out and lowering in one continuous movement by gravity
  • Lifeboat launched in minimal time
  • Designed to comply with the latest SOLAS/IMO requirements

Double pivoting gravity davits for lifeboats

VIP & LPLG SERIES

  • Multi-pivot system
  • Swing-out and lowering in one continuous movement by gravity
  • Low installation height
  • Designed to comply with the latest SOLAS/IMO requirements
