Saving energy, Cutting CO2 emissions
Energy efficiency is the single most important factor in reducing CO2 emissions. OPTIDRIVE™ variable speed drives from Invertek Drives can cut the energy consumption of fans, pumps and compressors found on marine vessels by as much as 60%.
Integrated safety
OPTIDRIVE™ VFDs provide SIL2 (Safety Integrated Level) functional safety standards based on the IEC 61508, providing complete peace of mind.
OPTIDRIVE™ is approved by DNV, an independent globally renowned foundation with the objective of safeguarding life, property, and the environment.
Variable frequency drives for Marine applications
GENERAL PURPOSE DRIVE
COMPACT, RELIABLE AND EASY TO USE
Simply power on and Optidrive E3 is up and running, providing precise motor control and energy savings using the factory settings.
5 years warranty
110 – 480 VSingle & 3 phase input
0.37–37 kW0.5–50 HP
Simple Commissioning
14 parameter basic setup. Default settings suitable for most applications. Contactor style connection for simple wiring.
Intuitive Keypad Control
Precise digital control at the touch of a button.
Application Macros
Switch between Industrial, Pump & Fan modes to optimise Optidrive E3 for your application.
Internal Category C1 EMC Filter
An internal filter in every Optidrive E3 saves cost and time for installation. Cat C1 according to EN61800-3:2004
Sensorless vector control for all motor types:
IM
- IE2, IE3, IE4 & IE5 Induction Motor
PM
- AC Permanent Magnet Motor
BLDC
- Brushless DC Motor
SynRM
- Synchronous Reluctance Motor
LSPM
- Line Start PM Motor
- Simple Commissioning
14 parameter basic setup. Default settings suitable for most applications. Contactor style connection for simple wiring.
Up to 50 parameters available in total for a highly flexible performance.
- Internal Category C1 EMC Filter
An internal filter in every Optidrive E3 saves cost and time for installation.
Cat C1 according to EN61800-3:2004
- Optistick Smart Compatible
Rapid commissioning tool.
- Intuitive Keypad Control
Precise digital control at the touch of a button.
- Application Macros
Switch between Industrial, Pump & Fan modes to optimise Optidrive E3 for your application.
- Sensorless Vector Control for all Motor Types
- Induction Motors (IM)
- Permanent Magnet Motors (PM)
- Brushless DC Motors (BLDC)
- Synchronous Reluctance Motors (SynRM)
- Line Start PM Motor (LSPM)
- Options & Software
A range of external EMC filters, brake resistors, input chokes and output filters are available.
Installation Options
- Internal PI control
- Internal brake chopper
- Dual analogue inputs
- Operates at up to 50°C
- Option for control of single phase motors
Application Macros
Switch modes at the touch of a button to optimise Optidrive E3 for your application

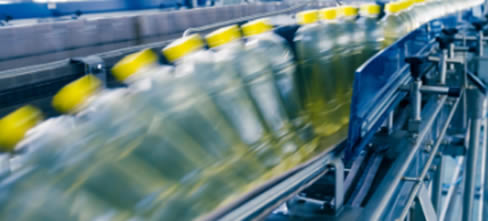

Industrial Mode
Industrial mode optimises Optidrive E3 for load characteristics of typical industrial applications.
Applications include:
- Conveyors
- Mixers
- Treadmills

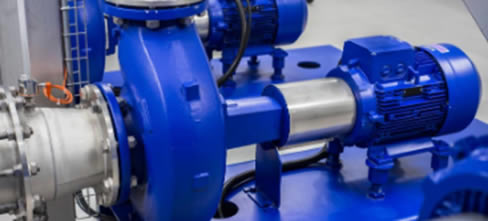

Pump Mode
Pump mode makes energy efficient pump control easier than ever.
Applications include:
- Dosing Pumps
- Borehole Pumps
- Transfer Pumps
- Swimming Pools
- Spas
- Fountains

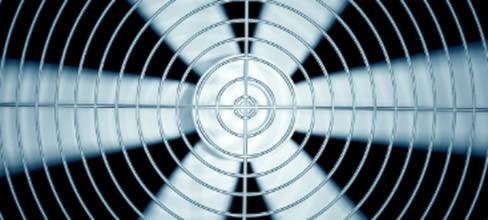

Fan Mode
Fan mode (inc. fire operation) makes air handling a breeze, ideal for simple HVAC systems.
Applications include:
- Air Handling Units
- Ventilation Fans
- Circulating Fans
- Air Curtains
- Kitchen Extract

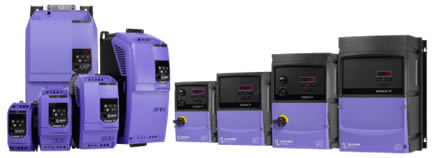

Enclosure Options
Optidrive E3 is available in a range of IP20 & IP66/NEMA 4X enclosures.
IP20
- Compact, robust enclosures for panel/cabinet mounting
- Sizes 1-5 cover the full power range, up to 37 kW/50 HP
- Operates up to 50°C
- Power supply connects at the top (except frame size 5)
- Motor supply connect at the bottom
Fast Connection
5mm rising clamp terminals with captive screws
Quick Reference
Integrated help card
Simple Installation
DIN rail and keyhole mounting options
Modbus RTU CAN
on-board as standard
Optistick Smart
Rapid parameter cloning and Bluetooth PC interface
IP66/NEMA 4X Outdoor
- Outdoor rated tough polycarbonate enclosure
- Sizes 1-4 up to 22 kW/30 HP
- Dust tight and washdown ready
- Local speed potentiometer
- Run Reverse / Off / Run Forward Switch
- Lockable Mains Disconnect / Isolator
- 2 x RJ45 ports
- EMC disconnect
- Large wiring chammber
- Removable gland plate
Direct Mounting
Install directly on your processing equipment and be sure of protection from dust, contaminants and high‑pressure washdown.
Locally Customisable
Flat front to terminal cover with mounting points for switches and an internal PCB.
Coated Heatsink as Standard
Ideal for hygiene based operations requiring washdown — such as food and beverage
Switched Models
Simply wire up the drive, turn the inbuilt potentiometer and the motor will start running – allowing immediate energy savings.
- HIGH PERFORMANCE DRIVE
High performance and easy to use
The perfect combination of high performance together with ease of use allows even the most demanding applications to be tackled easily by the Optidrive P2 variable frequency drive.
Sensorless vector control for all motor types:
IM
- IE2 & IE3 Induction Motor
PM
- AC Permanent Magnet Motor
BLDC
- Brushless DC Motor
SynRM
- Synchronous Reluctance Motor
Key features include:
- Simple PLC functionality
- Built-in EMC filter
- Low ambient operation (-10°C)
- Dedicated hoist mode
- Integral brake transistor
- Safe torque off
Advanced Motor Control
Invertek has developed advanced mathematical algorithms and uses the very latest hardware technology to ensure Optidrive P2 provides exceptional motor control.
Powerful, Versatile and Easy to Use
Designed for fast installation and commissioning, P2 variable frequency drive provides the most cost effective solution for industry.
Features
200 – 600 V Single & 3 phase input
0.75 – 250 kW
1 – 400 HP
150% overload for 60 seconds
200% overload for 4 seconds
Industrial heavy duty rating for every mode
Optidrive P2 Features
High performance, variable frequency, excellent usability and flexible to meet the needs of your application
- Sensorless Vector Control
Up to 200% torque from zero speed ensures reliable starting and accurate speed control under all load conditions.
- PM Motor Control
Future proof. Allows upgrade to the latest generation of high efficiency permanent magnet motors.
- Built-in EMC Filter
An internal filter in every Optidrive P2 saves cost and time for installation.
- Integral Brake Transistor
Saves space, cost and time for installation.
- Sensorless Vector Control for all Motor Types
- Induction Motors (IM)
- Permanent Magnet Motors (PM)
- Brushless DC Motors (BLDC)
- Synchronous Reluctance Motors (SynRM)
- Line Start PM Motor (LSPM)
- Options & Software
A range of external EMC filters, brake resistors, input chokes and output filters are available.
- Optistick Smart Compatible
Rapid commissioning tool.

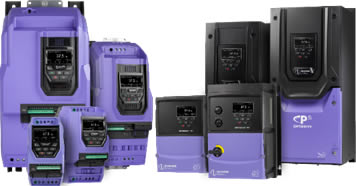

Enclosure Options
Optidrive P2 is available in a range of IP20, IP55 & IP66/NEMA 4X enclosures
IP20
- Compact, robust enclosures for panel/cabinet mounting
- Sizes 2-4, 6A, 6B & 8 cover power ranges up to 250 kW/400 HP
- Operates up to 50°C
- Keyhole mounts for fast installation
- Maintenance Interval Timer and Service Indication
Modbus RTU CAN
on-board as standard
Fast Connection
5mm rising clamp terminals with captive screws
Quick Reference
Integrated help card
Simple Installation
DIN rail and keyhole mounting options
Integrated Cable Management
High Quality Long-Life Fans
Pluggable Terminals
Pluggable Modules
Multi-language TFT display
Hand/Auto Keypad
Contactor-style Power Arrangement
IP55
- Compact, robust enclosures for panel/cabinet mounting
- Sizes 4-8 cover power ranges up to 250 kW/400 HP
- Operates from -10°C to 50°C
All Optidrive P2 units provide 150% overload for 60 seconds as standard, ensuring each drive is suitable for Heavy Duty applications, whilst the IP55 enclosed versions ensure the drive is tough enough to survive in industrial environments.

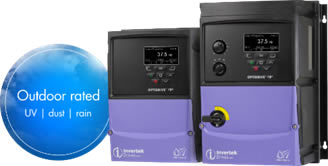

IP66/NEMA 4X Outdoor
Outdoor rated enclosed drives also suitable for direct machine mounting, dust tight and ready for washdown duty
- Outdoor rated tough polycarbonate enclosure
- Sizes 2-4 up to 7.5 kW/10 HP
- Dust tight and washdown ready
- Conformally coated PCBAs as standard
IP66/Nema 4X outdoor rated
Built with tough polycarbonate plastics specifically designed to withstand degredation by ultra-violet (UV), greases, oils and acids. Also robust enough not to become brittle at -20oC.
Dust-Tight Design
Install directly on your processing equipment and be sure of protection from dust and contaminants.
Locally customisable
Flat front to terminal cover with mounting points for switches and an internal PCB
Washdown Ready
With a sealed ABS enclosure and corrosion resistant heatsink, the Optidrive P2 IP66 is ideal for high-pressure washdown applications.
Coated Heatsink as Standard
Ideal for hygiene-based operations requiring washdown — such as food and beverage
Switched models
Connect the supply and then use the Switch and Pot to run.
- Easy to wire
- 2 x RJ45 ports – eliminate the need for a splitter
- Easily accessible EMC disconnect
